The Renuva Calibration inspection
Tips:
Scope of application: Ordinary person
Applicable grade: General
Service tools： Need not
Checking the Calibration of the aiming beam and the laser beam every one month.

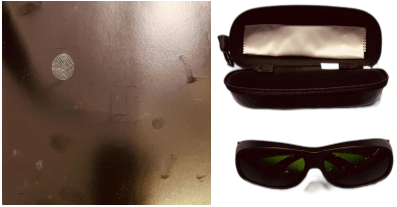

Steps to check the Calibration :(keep the black paper at the end of the tip as still as possible).Tools: Laser photographic paper, Laser protective glasses
The EffiTip was assembled into Handpiece.

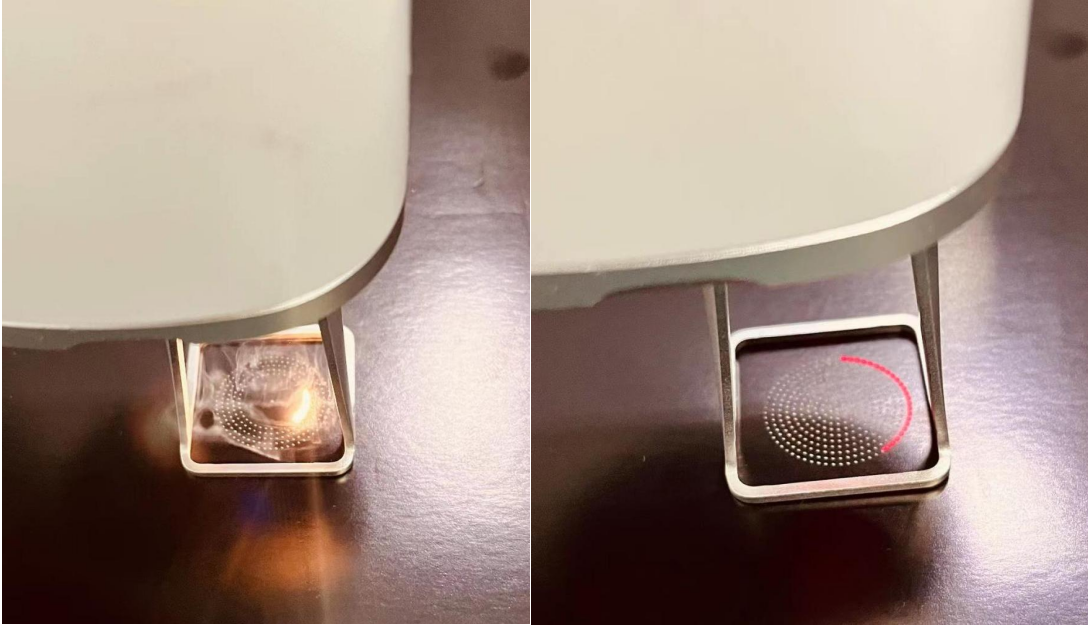

At this time, the red aiming beam can be seen on the photo paper(if there is nothing or

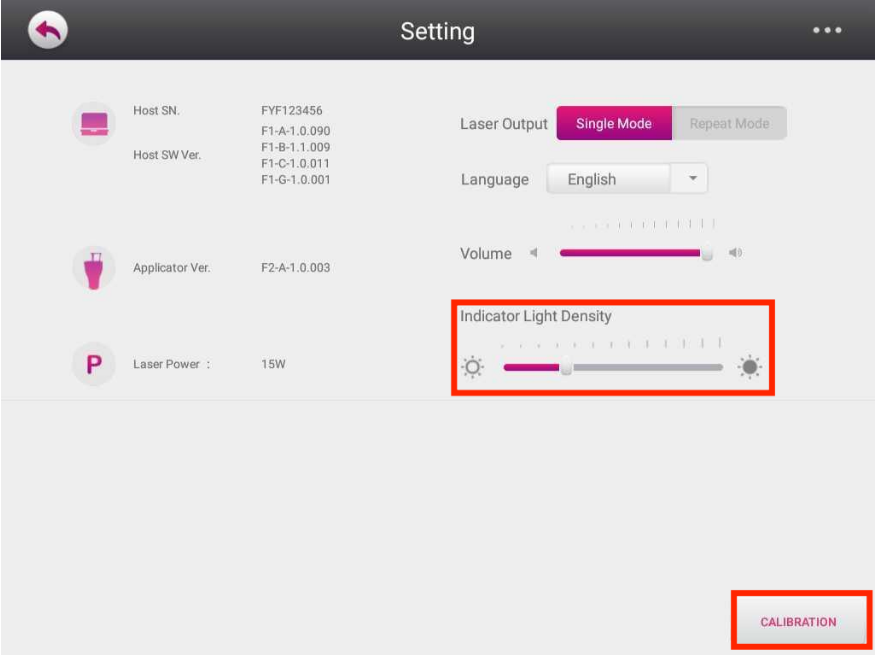

not clear, adjusting the aiming beam brightness in the Indicator Light Density)

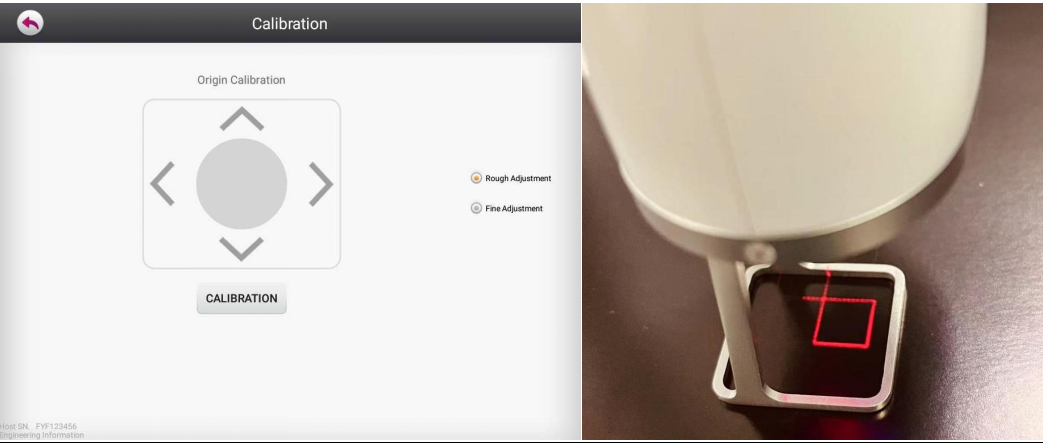

Before calibration，the aiming beam is outside the EffiTip range.

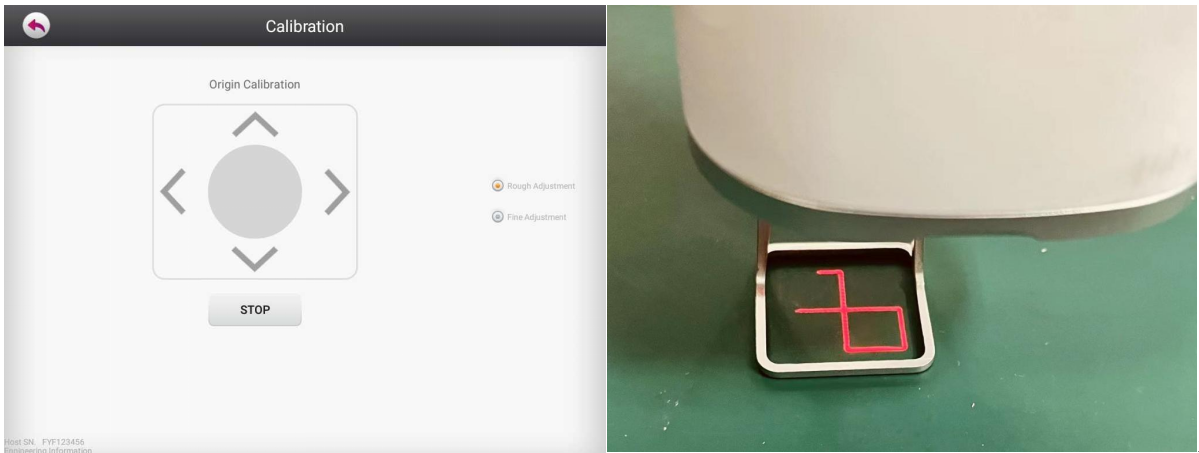

After calibration, the aiming beam is in the middle position of the EffiTip range.

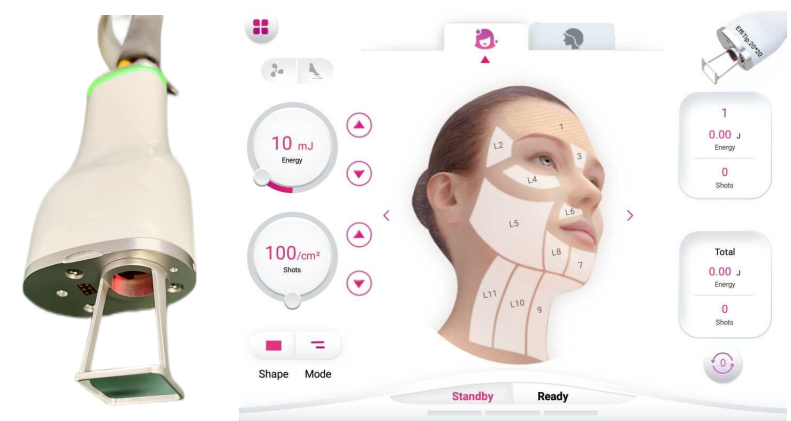

Adjust to the maximum scanning area ( 20mm*20mm), the energy to 10mj, Spots density to 100
( the minimum shots); Ready the device; Trigger the pedal and the laser will shoot on the the photo
paper and leave burn marks on it. Check whether the the aiming beam scanning area is consistent
with the laser spots.
If the two spots deviate seriously, please contact the Wingderm service or local agent.Related Articles
Renuva Energy test
