Renuva Software Upgrade steps

Tips:

Scope of application: Engineer

Applicable grade: Professional

Service tools:  Phillips screwdriver、 Inner Hexagon spanner

​

I. ARM Board

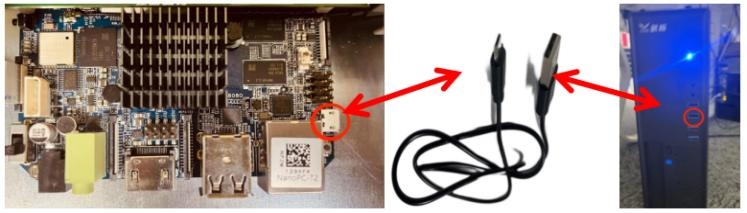

Android line connected with the ARM Board and computer

Hold down the PWR key on the ARM Board and power up. After 7s, release the PWR key

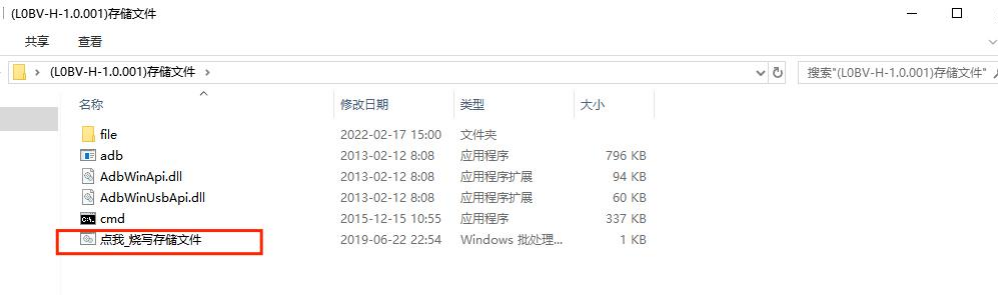

Computer path“(L0-H-1.0.001)存储文件 -> click 我_烧写存储文件.bat”

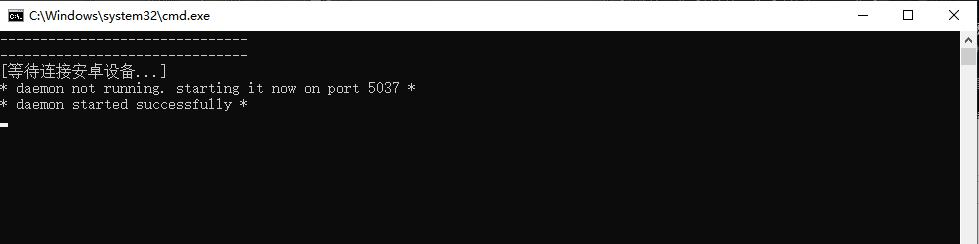

The system will automatically run without any operation until it is automatically closed. After the

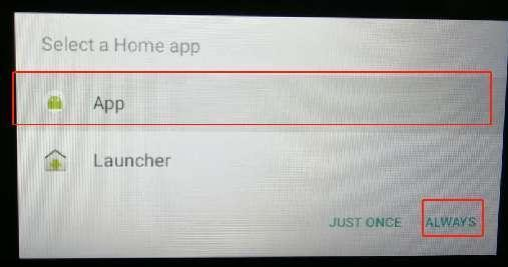

restart, select the App below and click ALWAYS to enter the application system.

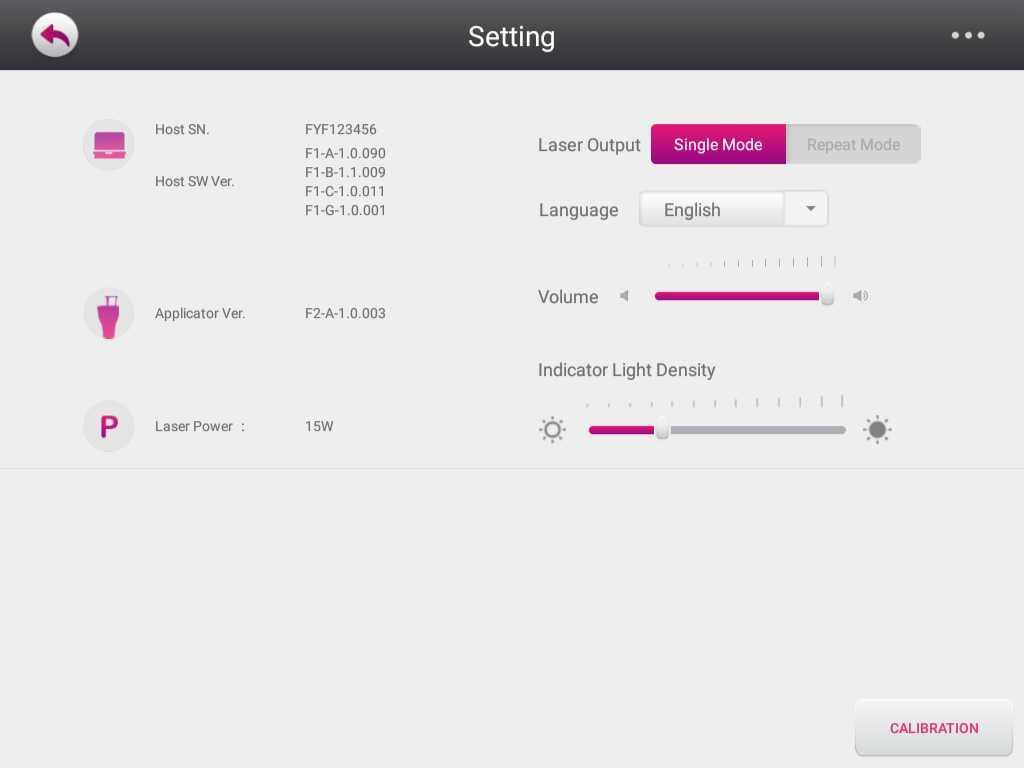

Enter the password, enter the application setting interface, set the volume to the

maximum, click the button, return to the work interface, turn off the equipment.

II. Main Board

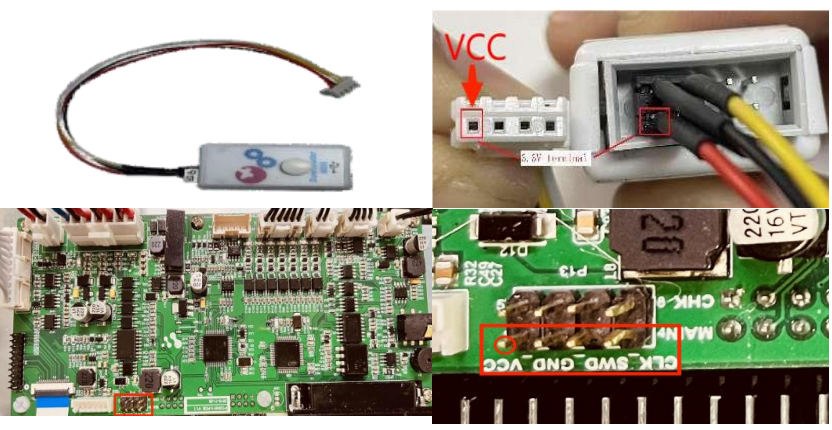

Under the shutdown state, the Main Board is connected to the off-line programmer.

The VCC interface on the Main Board and the VCC interface of the off-line programmer.

The pin on the outer edge of the Main Board

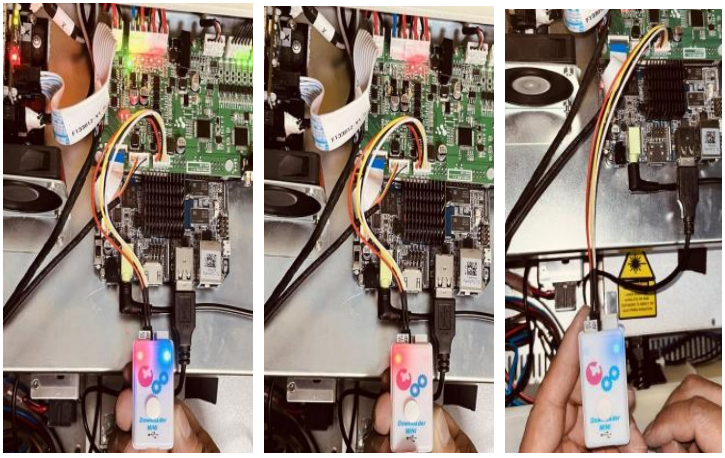

Start up, Press the button on the off-line programmer. A flashing red light that indicates it is

working， The blue light is on long. At this time, the Main Board System Upgrade record is

completed. Shut down, remove the off-line programmer, will show the line connection, and

restart the equipment.

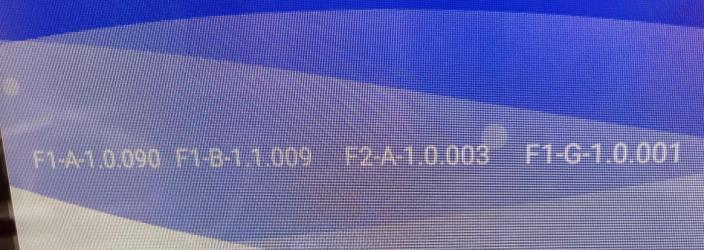

Reboot, the screen shows the version number

III. Handpiece

On shutdown condition, remove the Handpiece bottom cover and connect the

Handle control board to the off-line programmer.

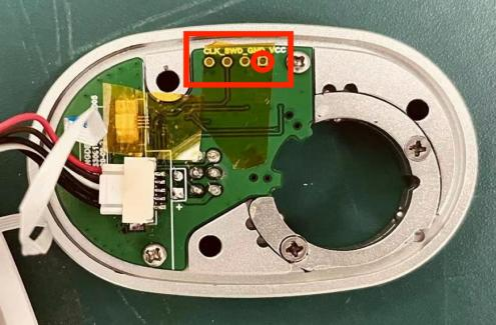

The VCC interface on the Handle control board and the VCC interface of the off-line programmer

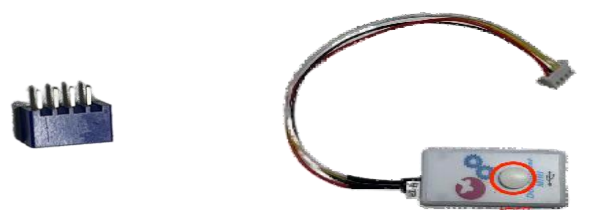

Transfer connector connected with the off-line programmer and Handle control board.

Start up, Press the button on the off-line programmer. A flashing red light that indicates

it is working， The blue light is on long. At this time, the Handle control board System

Upgrade record is completed. Shut down, remove the off-line programmer, will show

the line connection, and restart the equipment.
