Renuva Disassemble steps

Renuva Disassemble steps

Tips:

Scope of application: Ordinary person

Applicable grade: General

Service tools:  Phillips screwdriver、 Inner Hexagon spanner

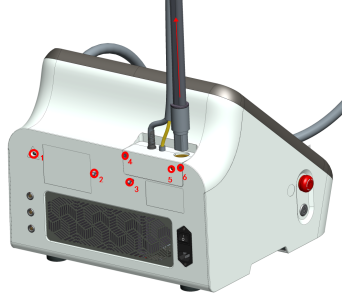

1、Remove the 6 screws (marked red) shown in figure 1 and pull the bracket upward. Pay attention to that the first screw is located at the bottom of the label and we need to firstly remove the label.

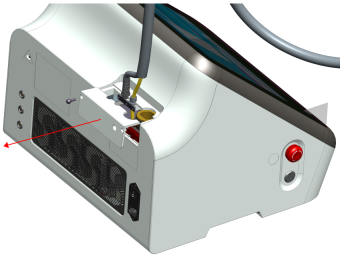

2、remove the cover on the back of the wire, as shown in figure 2

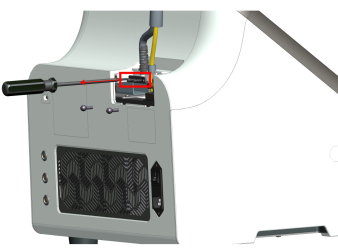

3、Remove the three screws from the wire fastener, as shown in Figure 3

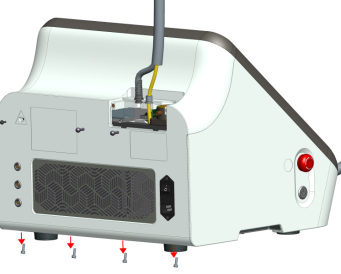

4、Remove the four screws under the back shell, as shown in Figure 4



5、Remove the back cover of the machine.

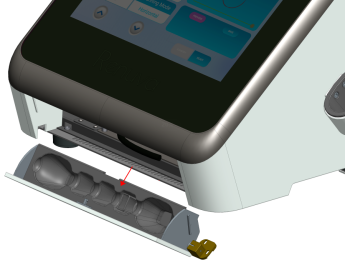

6、Remove the 4 screws under the storage box at the front of the machine.



7、Remove the storage box.

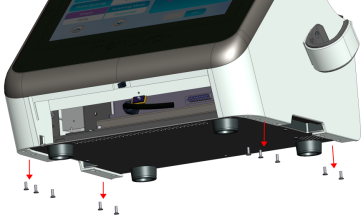

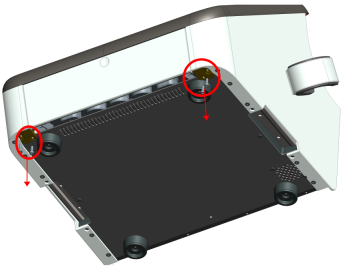

8、Remove the screws shown on both sides below the machine.

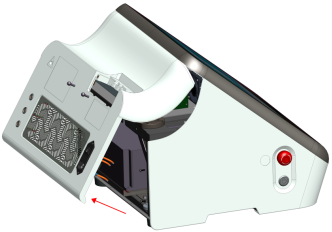

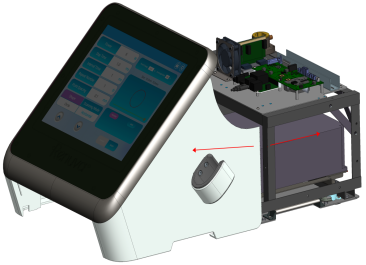

9、Pull the front shell and internal structural skeleton forward and backward.
