Renuva Energy test

Renuva Energy test

Tips:

Scope of application: Engineer

Applicable grade: Professional

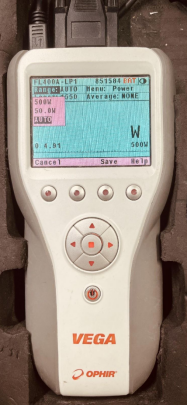

Service tools: Energy meter-OPHIR VEGA(ISRAEL) Detector-FL400A-LP1-50


I. Energy meter

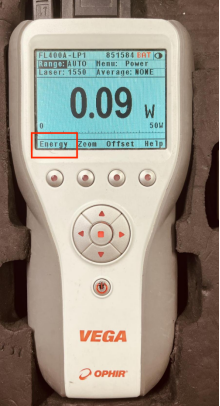

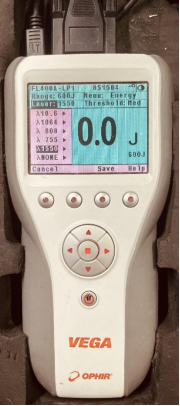

set up: Energy                                 Range: AUTO                        Laser:1550

II.Renuva

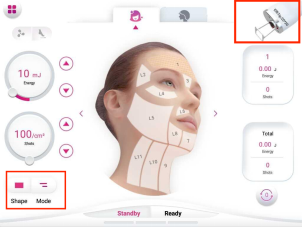

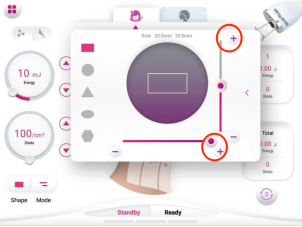

Tips: Effi Tip 20*20  Shape: Rectangle  Size:20mm*20mm


Mode: Inward or Outward                                  Laser Output: Repeat Mode

III.Energy test

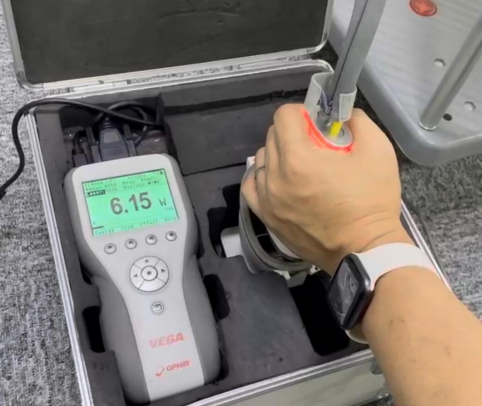

Continuous Laser Output test

Take the Maximum value

Output power test

Energy

Shots

Power range（W）

15mJ

500/cm²

4.92~6.15

30mJ

500/cm²

6.6~8.25

45mJ

500/cm²

8.16~10.2

Shots: 500/cm²

               5mJ;                                   30mJ;                                   70mJ
