Renuva Treatment tips switch failure
Tips:
Scope of application: Ordinary person
Applicable grade: General
Service tools： Need not
OST-7、OST-15 Treatment Tips Check the contact for foreign matter and wipe it clean with alcohol

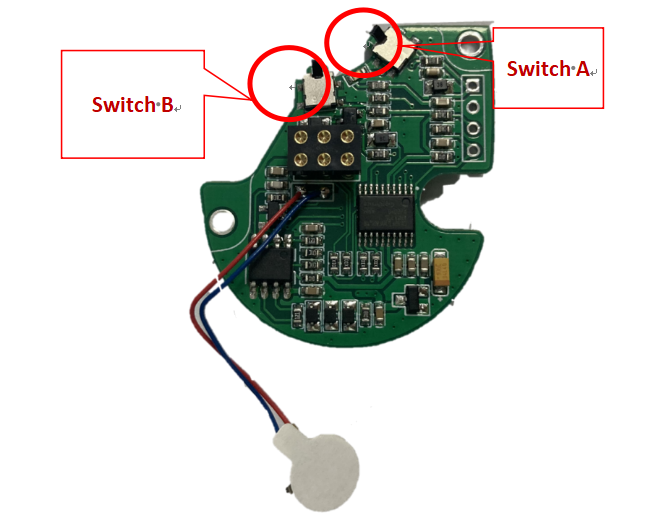

Switch A and Switch B Press down
10X20 GrowTip Parts No.:F211002
Switch A Press down
20X20 EffiTip Parts No.:F211001
Switch B Press down
OST-7 Parts NO:F213007 OST-15 Parts No.:F213006
Contrast it to the AccuTip, Switches A and B don't press down together

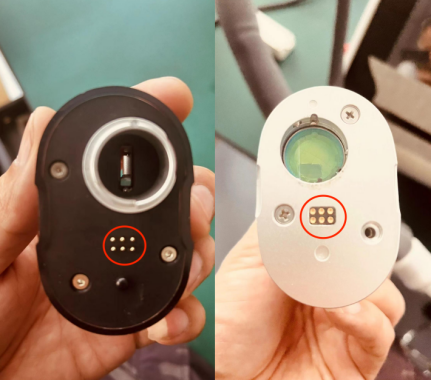

Touch contact switch apply to OST-15 and OST-7
