Warning W01: gate interlock plug is not inserted
a) This failure may be resulted from the improper operation. First, judge whether the failure is ascribed to “gate interlock plug is not inserted”; confirm whether “gate interlock plug” has been correctly inserted into the main console.
Note:
① Do not apply too much force while inserting the “gate interlock plug”. After aligning to the corresponding socket red point of shell, push in the plug gently. “Gate interlock plug” supports the hot plug.② “Gate interlock plug” is an accompanying accessory.
b) If the problem cannot be removed after the above steps, prepare tweezers (or other short-circuit terminal) and short-circuit 1# and 2# terminals; judge it is the failure of “gate interlock plug” if the alarm is eliminated.
c) If the alarm is not eliminated, take apart the instrument back cover and make P6.1 and P6.2 short-circuit with tweezers. If, however, the alarm is still not eliminated, judge if it is the failure of main control board, and try to replace the main control board of main console.

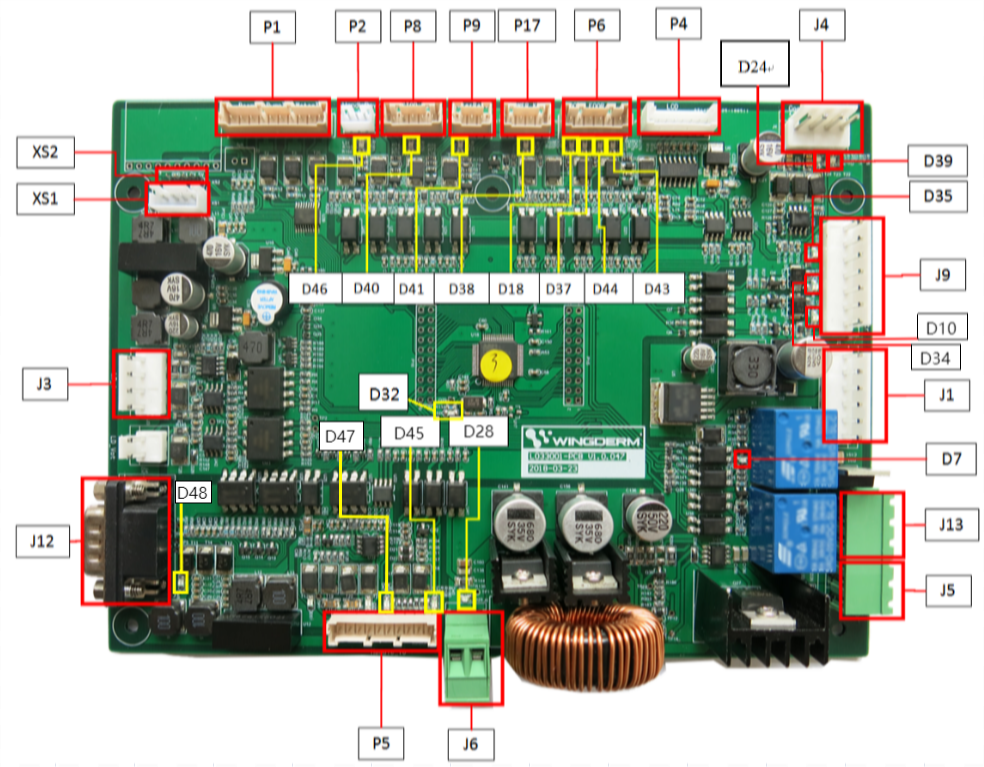

If the alarm is eliminated, it may be the failure of instrument line. Check the state of “main control board D18 of main console” and confirm whether the indicator lamp is the in the “off” state when “gate interlock plug is correctly inserted”. If the state of indicator lamp does not comply with the reality, confirm whether the corresponding wiring harness is loose and whether any line is broken according to the “wiring diagram”. (Where P6.1 and P6.2 have short circuit after “gate interlock plug is inserted”, use a multimeter to help test line connection/disconnection.)
Related Articles
Warning W01
a) 此故障有可能是操作不当引起，首先判断故障原因为“门联锁插头未插入”，请确认“门联锁插头”已被正确插入主机中。 注意： ① 插入 “门联锁插头”时，不要使用蛮力，注意和机壳对应插座红点对齐后，轻轻推入即可。“门联锁插头”支持热插拔。 ② “门联锁插头”为随机附件。 b) 如果上述步骤不能解决问题，则准备镊子（或其他短路端子），短路1、2端子，如果报警消除，则判断为“门联锁插头”故障。 ...Warning W04
a) 此故障有可能是操作不当引起，首先判断故障原因为“治疗室门已打开”。 1. 将主机门联锁插座1、2短路，3、4短路，此时该报警消除，则判断门联锁插头故障，按照步骤2、3进行检验，否则进行步骤b)。 2. 如果您未对门联锁插头进行改装，请确认使用了随机门联锁插头；默认为治疗室门关闭状态。 ...Warning E01: the handpiece is not inserted into the socket in the main console
a) This failure may be resulted from the improper operation. First, judge whether the failure is ascribed to “handpiece is not inserted”. Insert the handpiece after shutoff and then restart the machine. b) If the problem cannot be resolved after the ...Warning W04: treatment room door is opened
a) This failure may be resulted from the improper operation. First, judge whether the failure is ascribed to “treatment room door is opened”. 1. Short circuit main console gate interlock plug sockets 1 and 2 and main console gate interlock ...Warning W05
a) 此故障有可能是操作不当引起，首先判断故障原因为“脚踏未连接”，请确认“脚踏开关插头”已被正确插入主机中。 注意： ① 插入 “脚踏开关插头”时，不要使用蛮力，注意和机壳对应插座红点对齐后，轻轻推入即可。“脚踏开关插头”支持热插拔。 ② “脚踏开关”为随机附件。 b) 将主机脚踏插座1、3短路，如果此时该报警消除，则判断脚踏插头故障，检查脚踏插头。 ...
