Warning E11
说明：
由于版本不兼容性，主机软件版本L0-A-1.0.129、L0-A-1.0.133、L0-A-1.0.134不兼容手柄软件版本L4-A-1.0.001(或基于此版本定制版本) 。维修前请核对是否为使用此版本搭配导致。
a) 此故障代表“与手柄通讯异常”。
b) 可以通过尝试更换手柄来缩小诊断范围。

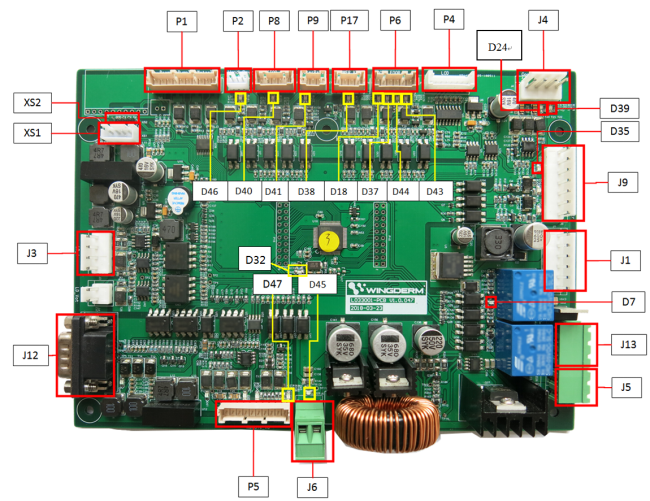

c) 如果判断为主机问题，且检查手柄显示屏或指示灯有显示，则检查主机主控板P5.7、P5.8与主机端手柄插口，是否断线或接触不良。
d) 如果判断为主机问题，且检查手柄显示屏或指示灯无显示，则检查主机主控板P5.6、P5.10与主机端手柄插口，是否断线或接触不良；P5.6、P5.10之间电压应为DC5V。

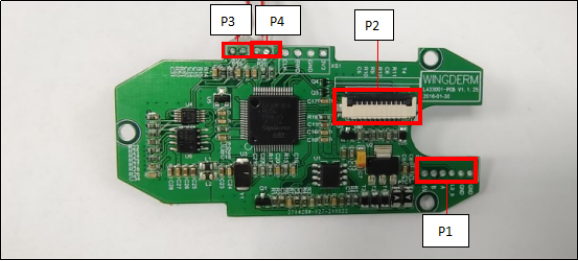

e) 如果判断为手柄问题，且检查手柄显示屏或指示灯无显示，则手柄供电异常。检查手柄控制板P1.1、P1.6与手柄端手柄插口，是否断线或者接触不良。
f) 如果判断为手柄问题，且检查手柄显示屏或指示灯有显示，则可能为通讯异常。检查手柄控制板P1.4、P1.5与手柄端手柄插口，是否断线或者接触不良。
g) 如仍不能解决问题，则尝试更换主机主控板或手柄控制板。
Note:
In light of the incompatibility of version, main console software versions L0-A-1.0.129, L0-A-1.0.133 and L0-A-1.0.134 are incompatible with the handpiece software version L4-A-1.0.001 (or the customized version based on this version). Prior to maintenance, check whether it is caused by the version matching of this version.
a) This failure means the “abnormality of the communication with handpiece”.
b) Try to reduce the diagnosis scope by replacing handpiece.
c) If the problem is judged attributable to the main console and confirming there is the display in handpiece display screen or indicator lamp according to the check, check the socket of main control boards P5.7 and P5.8 of main console with handpiece at the main console end and confirm whether there is a broken line or poor contact.
d) If the problem is judged attributable to the main console and confirming there is no display in handpiece display screen or indicator lamp according to the check, check the socket of main control boards P5.6 and P5.10 of main console with handpiece at the main console end and confirm whether there is a broken line or poor contact.
e) If the problem is judged attributable to the handpiece and confirming there is no display in handpiece display screen or indicator lamp according to the check, check whether the handpiece power supply is abnormal. Check the socket of handpiece control boards P1.1 and P1.6 with handpiece at the handpiece end and confirm whether there is a broken line or poor contact.
f) If the problem is judged ascribed to the handpiece and confirming there is no display in handpiece display screen or indicator lamp according to the check, it may be caused by the communication abnormality. Check the socket of handpiece control boards P1.4 and P1.5 with handpiece at the handpiece end and confirm whether there is a broken line or poor contact.
g) If the problem still exists, try replacing main control board of main console or handpiece control board.
